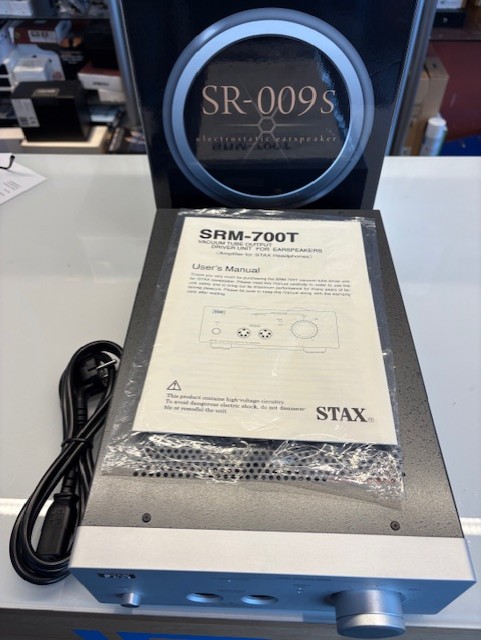

Käytetty Stax SRM-700T & SR-009S huippukuulokesetti.
SR-009S SPECIFICATIONS:
Type: Push-Pull Open Back Circular Electrostatic Headphone
Frequency Response: 5 - 42,000Hz
Electrostatic Capacitance: 110pF (including cable)
Impedance: 145k Ω (including cable, at 10kHz)
Sound Pressure Sensitivity: 101dB / 100V r.m.s. 1 kHz
Maximum Sound Pressure: 118dB / 400Hz
Bias Voltage: 580V DC
Left & Right Identification: "L" and "R" indicated on the arc assembly (inside head spring) Left channel cable is marked with a solid Line. Right channel is marked with a dotted Line.
Ear Pads: Genuine Lamb Leather (direct skin contact), high-quality synthetic leather (surrounding portion)
Cable: Silver-coated 6N (99.9999%) OFC parallel 6-strand, low-capacity special wide cable, 2.5m full length
Weight: 563g (including cable), 441g (without cable)
SRM-700T (Vacuum Tube Driver Unit)
Specifications
Type: FET input + vacuum tube output hybrid DC amplification driver unit
Vacuum tube: 6SN7 x2
Frequency response: DC – 100kHz (with one SR-009S)
Gain: 60dB
Harmonic distortion: 0.01% or less (1kHz/100Vrms output)
Input impedance: 50kΩ (RCA), 50kΩx 2 (XLR)
Maximum output voltage: 340Vrms (1kHz)
Bias voltage: PRO 580V
Operating temperature / humidity: 0 to 35 degrees C / less than 90% (non condensing)
Input terminal: RCA x 1, XLR x 1
Output: RCA parallel output terminal
Power consumption: 54W
Dimensions: 240 W x 103 H x 393 D mm (maximum protruding portion included)
Weight: 5.7kg
|
| |
