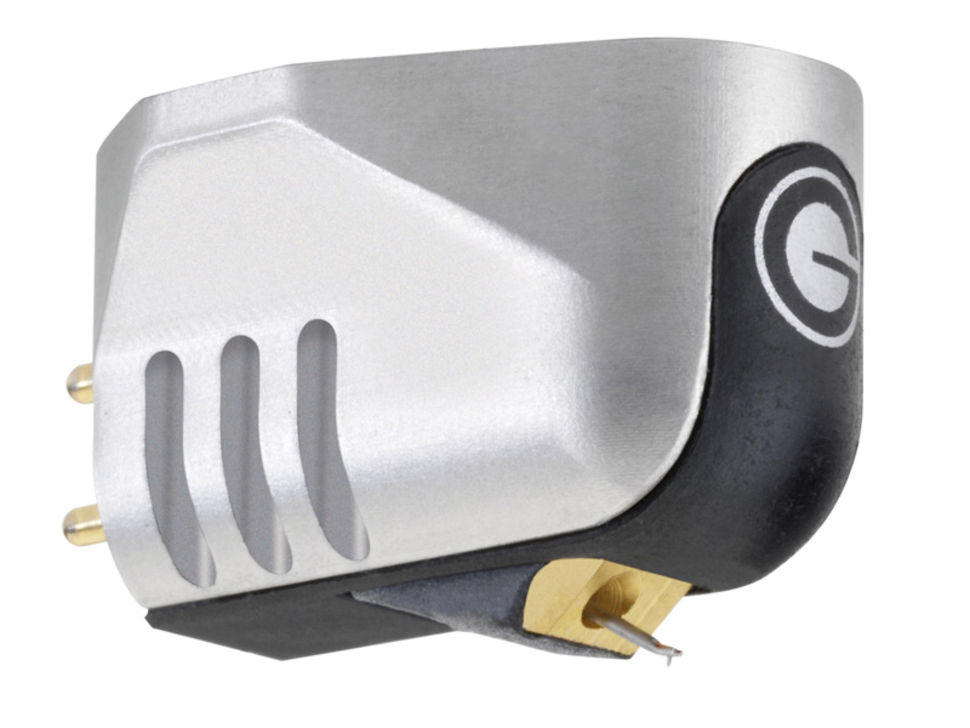

To ensure a record cartridge reproduces an accurate transcription of the record groove, the cartridge components must be rigidly mounted to the tone arm, whilst simultaneously allowing the tiniest movements of the diamond stylus to be transmitted, via the cantilever, to the sensing coils. The Legacy boasts an ultra low resonance magnesium metal body which is both very light and extremely strong. For convenience and rigidity, it has threaded inserts allowing the cartridge to be easily mounted and accurately aligned into the headshell. The stylus is a very low mass 'Vital' fine line diamond, which is highly polished and gives extremely low distortion. To maintain rigidity, this is attached to a hard alloy cantilever which transfers the maximum level of detail from the diamond to the coils; the latter are hand wound using only the highest purity copper.
Tekniset tiedot
Taajuusvaste: 20 Hz - 30 kHz +/- 3 dB
Kanavatasapaino: 1 dB @ 1 kHz
Kanavaerotus parempi kuin 25 dB @ 1 kHz
Herkkyys: 0.25 mV 1 dB, 1 kHz @ 5 cm/sec
Staattinen komplianssi: 25 mm/N
Dynaaminen komplianssi @ 10 Hz 15 mm/N
Vertikaalinen neulakulma: 24°
Stylus Radius Vital Fine Line
Kuormitusresistanssi: 100 Ω
Kuormitus kapasitanssi: 100 - 1000 pF
Sisänen induktanssi: 3 uH
Sisäinen resistanssi: 7 Ω
Massa: 8.0 g
Cartridge Mass (inc. fixings) 8.9 g
Fixing Centre 0.5" (12.7 mm)
Neulapaino: 1.5 - 2.0 g (1.7 g suositeltu) |
| |
